## Common Reflection Surface Processing (CRS)

Common Reflection Surface is a method to describe the kinematics of reflections in seismic reflection data by the means of an analytic traveltime approximation centred at zero-offset. The traveltime formula depends on attributes that are extracted from the seismic reflection data by fitting the operator to the data for all samples. The CRS method describes the traveltime using 8 parameters.

## Proprietary Implementation

Our proprietary implementation by Dr. German Hoecht features a high resolution prestack picking of all 8 parameters which ensures azimuth compliant moveout. Besides estimating correctly the dip of the data prestack, we can improve the stacking velocities automatically using CRS and even determine azimuthal dependant velocities.

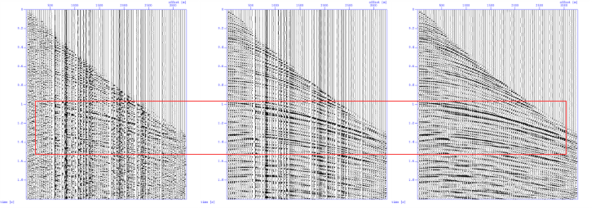

Partial prestack CRS stacking can be done regularized or into any geometry including the original input geometry. This way we can preserve the acquisition design when applying CRS for noise reduction.

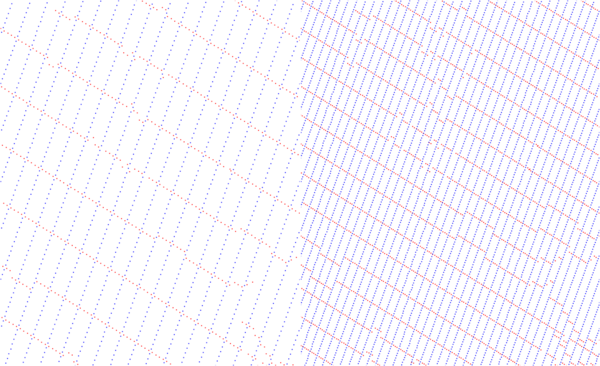

By interpolating into a denser regular grid we can preserve azimuth information and at the same time remove aliasing effects from the data.

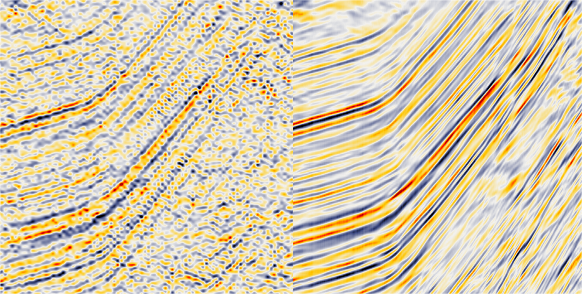

A major feature of our propriety CRS implementation is the usage of multi-operator and operator-oriented stacking. This results in preservation of conflicting dips and makes attribute smoothing redundant.

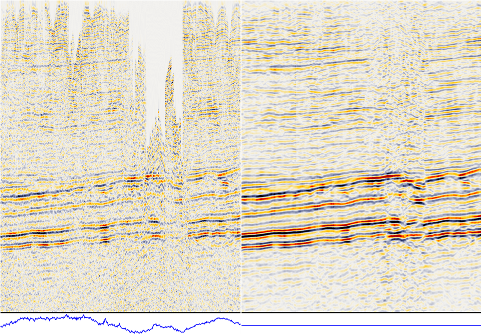

This example shows the interpolation of large gaps in a dataset by applying regularizing CRS. The noise is reduced and the target is much improved by the interpolation and regularization.

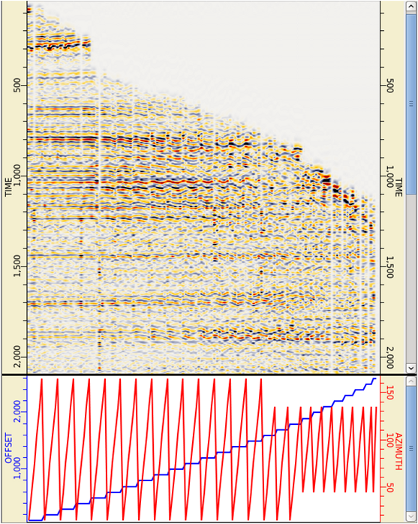

In addition to the interpolation into any given geometry we can regularize into a 5D geometry with offset- and azimuth-bins. The 5 domains are: inline, crossline, azimuth, offset and time., after the interpolation all bins are fully populated and regularized.

## Velocity Model Building

Our CRS features 3D NIP-Tomography and 3D Image-Ray-Tomography which convert RMS stacking velocities in time to interval velocities in depth correcting correctly for lateral positioning. Both methods are further explained in the depth imaging section.
